Stainless steel Slat Chains are suitable for conveying glass bottles, crates, cartons, and just about anything else. These Chains are also available in Double Hinges for extra load-carrying capacity and in Rubber Top for Inclined Conveyors.

We provide you with the best range of single-hinged straight-running chains, double-hinged straight-running chains, plastic modular conveyor belts, plastic straight-run conveyor belts, side-flex plastic modular belts, and modular belts with effective and timely delivery.

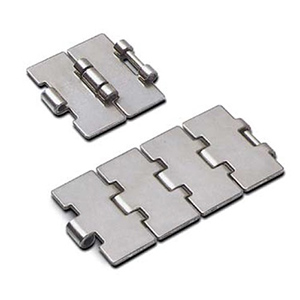

Single Hinge Straight Running Chains

Single Hinge Stainless Steel Slat Chains

Product Details:

MaterialStainless Steel
BrandUltraplast
Width In Mm3.25″ – 7.50″
Pitch1.5″ (38.1mm)
Plate Thickness3 mm
Material GradeSS 304

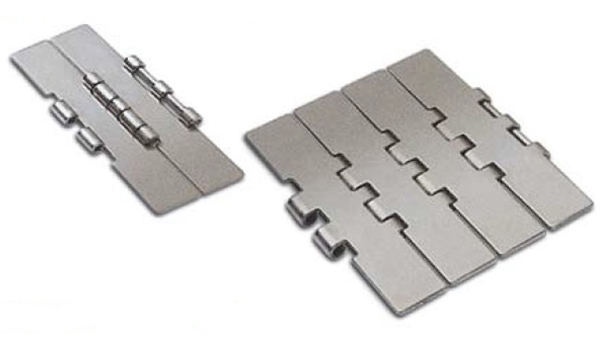

Double Hinge Straight Running Chains

Double Hinge Stainless Steel Slat Chains

Product Details:

MaterialStainless Steel
BrandUltraplast
Plate Thickness3 mm
Pitch1.5″ (38.1mm)
Width In Inch190.5 mm
Material GradeSS 304

SIDE FLEXING CHAINS

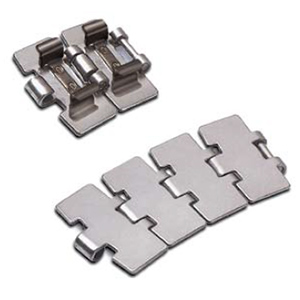

TAB FLEX

Side Flexing Chians Tab Flex

Product Details:

MaterialStainless Steel
BrandUltraplast
Min. Sideflex Radius (R)500 mm
Pitch1.5″ (38.1mm)
Plate Thickness3 mm
PinsWear Resistant Stainless Steel

MAGNET FLEX

Magnet Flex

Product Details:

MaterialStainless Steel
BrandUltraplast
Min. Sideflex Radius (R)500 mm
Pitch1.5″ (38.1mm)
Plate Thickness3 mm
PinsWear Resistant Stainless Steel

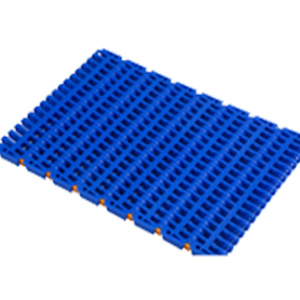

Plastic Modular Conveyor Belt

Plastic Modular Conveyor Belt

Product Details:

MaterialPP
BrandUltraplast
Pitch28/38/50 mm
Pin Diameter8 mm
Model Name/NumberUMB-50,UMB-38,UMB-25
Drive Sprocket8 Teeth
Tensile Load600-1200 Kg
Width Range150 mm to 2500 mm
TypeHinge + Centre Driven

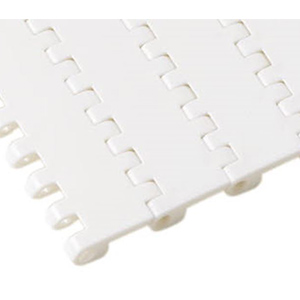

Plastic Straight Run Conveyor Belts

Plastic Straight Run Conveyor Belts UP

Product Details:

MaterialPP
BrandUltraplast
Pitch28/38/50 mm
Pin Diameter8 mm
Model Name/NumberUMB-50,UMB-38,UMB-25
Drive Sprocket8 Teeth
Tensile Load600-1200 Kg
Width Range150 mm to 2500 mm
TypeHinge + Centre Driven

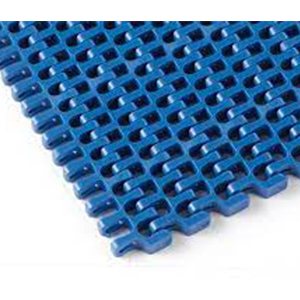

Side Flex Plastic Modular Belts

Side Flex Plastic Modular Belts

Product Details:

MaterialPlastic
BrandUltraplast
Pin Diameter6 mm
Turning Radius2.6 times the belt width (Approx)
Width100 mm to 900 mm
Drive Sprocket8 Teeth

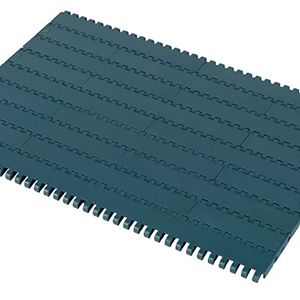

Modular Belts

Modular Belts

Product Details:

MaterialPlastic
BrandUltraplast
Tensile Strength140 mm
Pitch3.25″
Plate Thickness3 To 10 mm
Surface TreatmentPaint Coated
Usage/ApplicationBottling and Packaging Industry
